Noise- Input referenced noise at gain settings from 40 to 70dB:•Input shorted -128dB•150 Ohm source -126dB

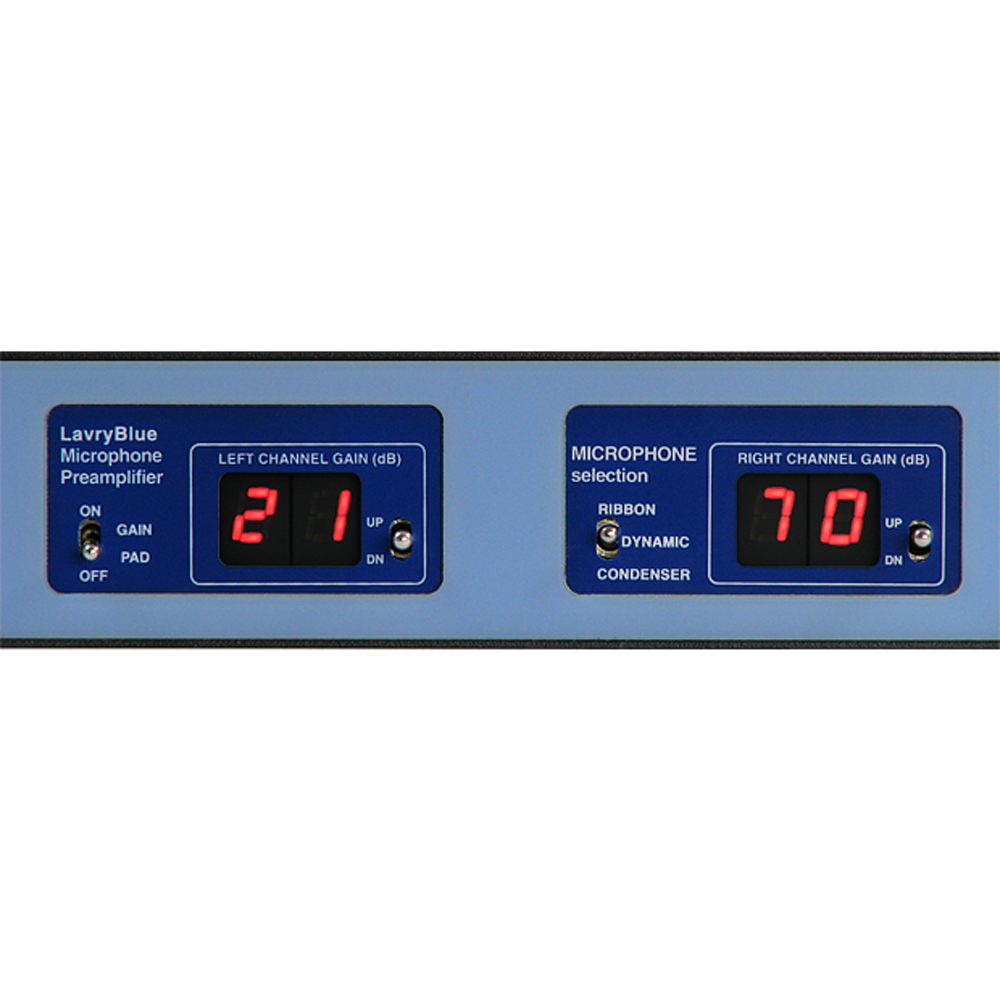

Gain-•Individual stepped analog control with 21 to 70 dB’s gain in 1dB steps for each channel.•Pad- Front panel switch controls both channels for 10dB lower output level.

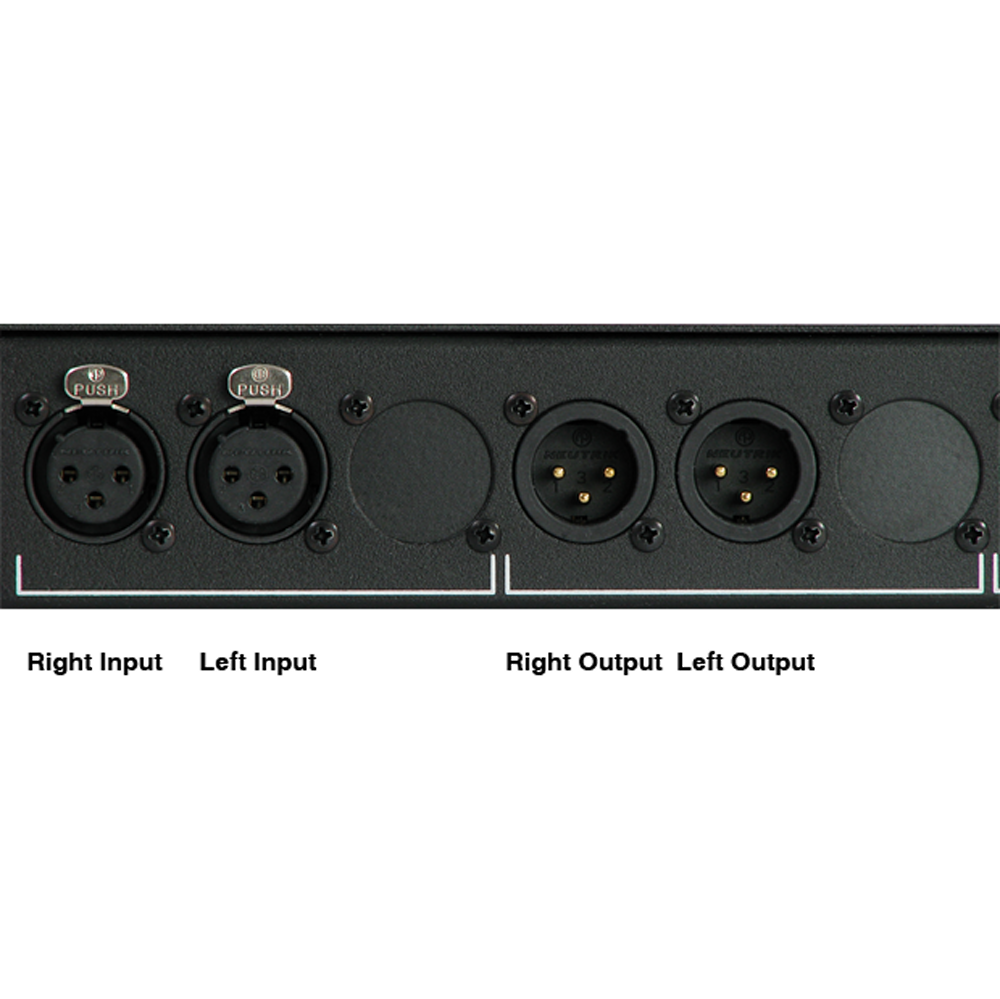

Inputs-•Two channels of electronically balanced XLR inputs wired for Pin 2 “+” (non-inverting), Pin 3 “-” (inverting).•Input impedance matching for Ribbon, Dynamic, and Condenser microphones. Front panel switch controls both channels. Absolute Maximum input +3V.
Outputs-•Two channels electronically balanced XLR outputs +4dBu nominal level. +24dBu Maximum Output Level. Wired for Pin 2 “+” (non-inverting), Pin 3 “-” (inverting) operation.•Can be configured for unbalanced operation using internal jumpers.
Phantom Power:•’+48V- Available on the input XLR connectors, only in the “Condenser” settings•Dual regulation provides exceptional inter-channel isolation.
