The MLA-2 is a stereo or 2-channel compressor with stepped drive (input gain), ratio, attack and release time and output gain controls.
For optimum transparency and freedom from noise the MLA-2 employs a non-VCA design.
For optimum transparency and freedom from noise the MLA-2 employs a non-VCA design.
※ 가격 문의!! ※
02-6358-1004 ~ 6으로 문의주세요!

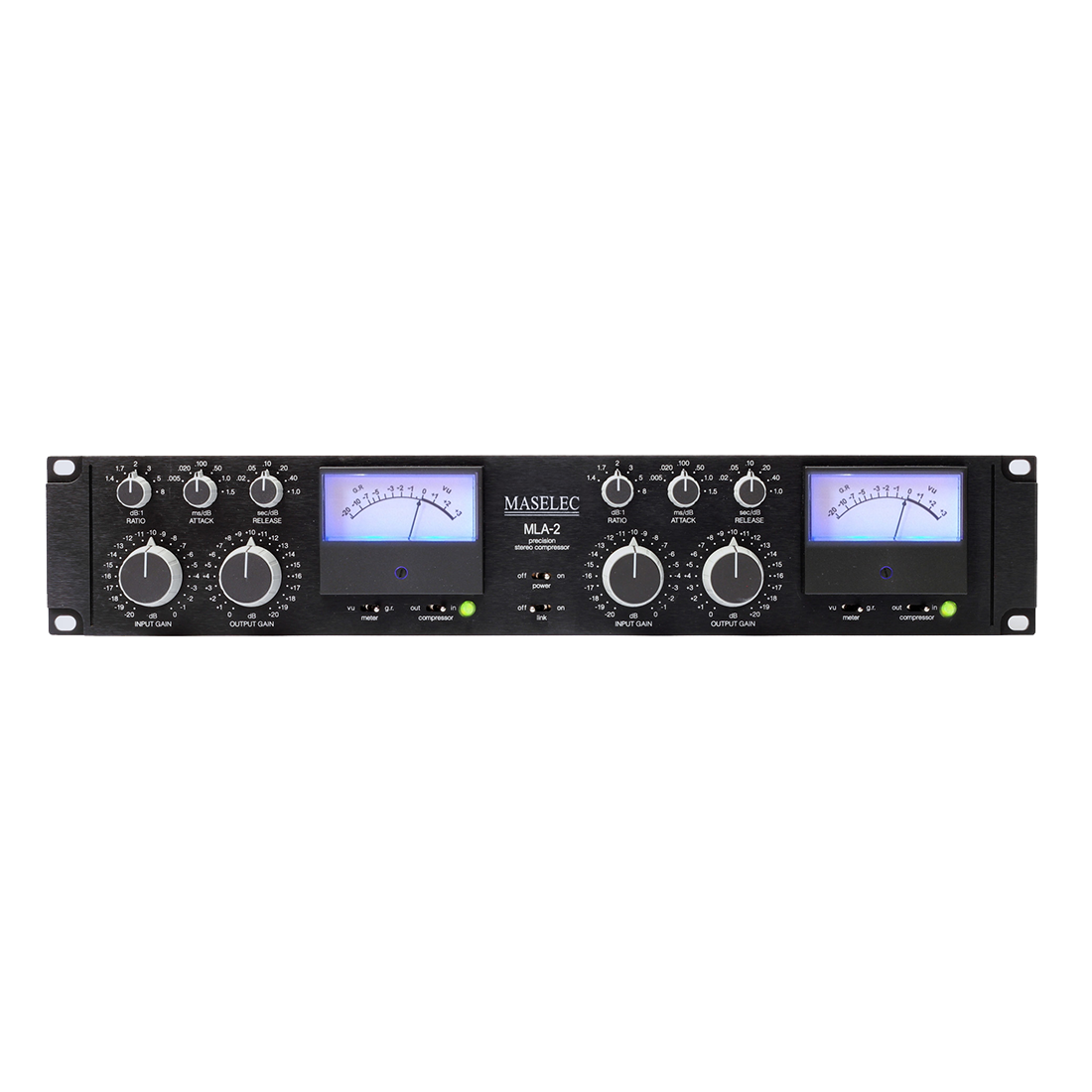

MASELEC
MLA-2
precision stereo compressor
Maselec MLA-2는 효과적이고 미묘한 압축을 제공하도록 설계된 매우 특별한 컴프레서입니다. 조절 가능한 드라이브 (또는 입력 게인)가있는 고정 된 임계 값의 원리를 사용합니다. 이는 조정 가능한 임계 값보다 더 직관적 인 작동을합니다. 드라이브를 시계 방향으로 돌리고 압축 깊이를 증가시킵니다.
압축 영역으로의 진행은 점진적이며 비율이 증가함에 따라 변합니다. 임계 값이 다른 비율 설정을 통해 약간 수정되어 최소 출력 게인 메이크업 조정이 필요합니다. 이는 비율 범위에서 약 2-3dB의 압축으로 일관된 게인 포인트를 만듭니다.
MLA-2 IMAGELINK 시스템은 한 채널 만 제어 할 때 스테레오 이미지 이동 위험을 피하기 위해 두 채널의 게인을 추적 할 수있는 스테레오 사이드 체인 링크를 제공합니다. 그러나 극단적 인 오른쪽 또는 왼쪽으로 배치 된 과도 현상은 다른 채널의 약간 자연스럽지 않은 더킹을 초래할 수 있으므로이를 방지하기 위해 스테레오 링크가 제어됩니다.
MLA-2는 스피치 및 기타 매우 역동적 인 소스뿐만 아니라 피아노, 색소폰 또는 드럼과 같은 악기로도 훌륭한 결과를 얻을 수 있습니다. 그것은 음향 학적으로나 점진적인 압축 곡선의 독특한 형태로 두드러진 특징을 가지고 있습니다. 그것은 최소한의 노력으로 신호 경로를 손상시키지 않고 필요한 warmth, punch 또는 Air를 제공합니다.
The MLA-2 Precision 2-Channel Compressor is intended for professional audio use in recording, mixing and mastering applications where high performance is required.
The MLA-2 provides a unique set of tools, carefully crafted to provide a compressor whose sonic character was the most important design objective.
The unique character of the device is evident in the technical description of the behaviour of the device.
Operational:
- Easy to operate with input gain controlling compression depth (drive) •
- Minimal gain adjustment needed when changing ratio •
- Optical gain element for smoothness and freedom from noise •
- Dynamically-controlled attack and release to minimize pumping
- Precision stepped controls •
- “ImageLink” Intelligent dynamic stereo linking system
- Output gain make-up •
- Switchable metering (VU): gain reduction or signal level
Technical:
- Low noise •
- Extended headroom with maximum input amplitude of +28dBu
- Extended frequency response •
- Low distortion •
- Electronically balanced inputs and outputs
Spec
- Input Gain control, adjusts compression depth (drive)
- Output Gain control for gain make-up
- Adjustable ratio from gentle compression to limiting
- Adjustable Attack and Release times
- Attack and Release times are also dynamically auto-adjusted to avoid pumping effects
- Switchable gain reduction or program level (VU) metering
- IMAGELINK system for intelligent stereo linking: Short transients on one channel do not duck both.
- Precision stepped controls for accuracy and repeatability; larger controls for often-used adjustments
- Low noise and wide dynamic range
- Electronically balanced XLR inputs and outputs
- Full bypass when the power is turned off

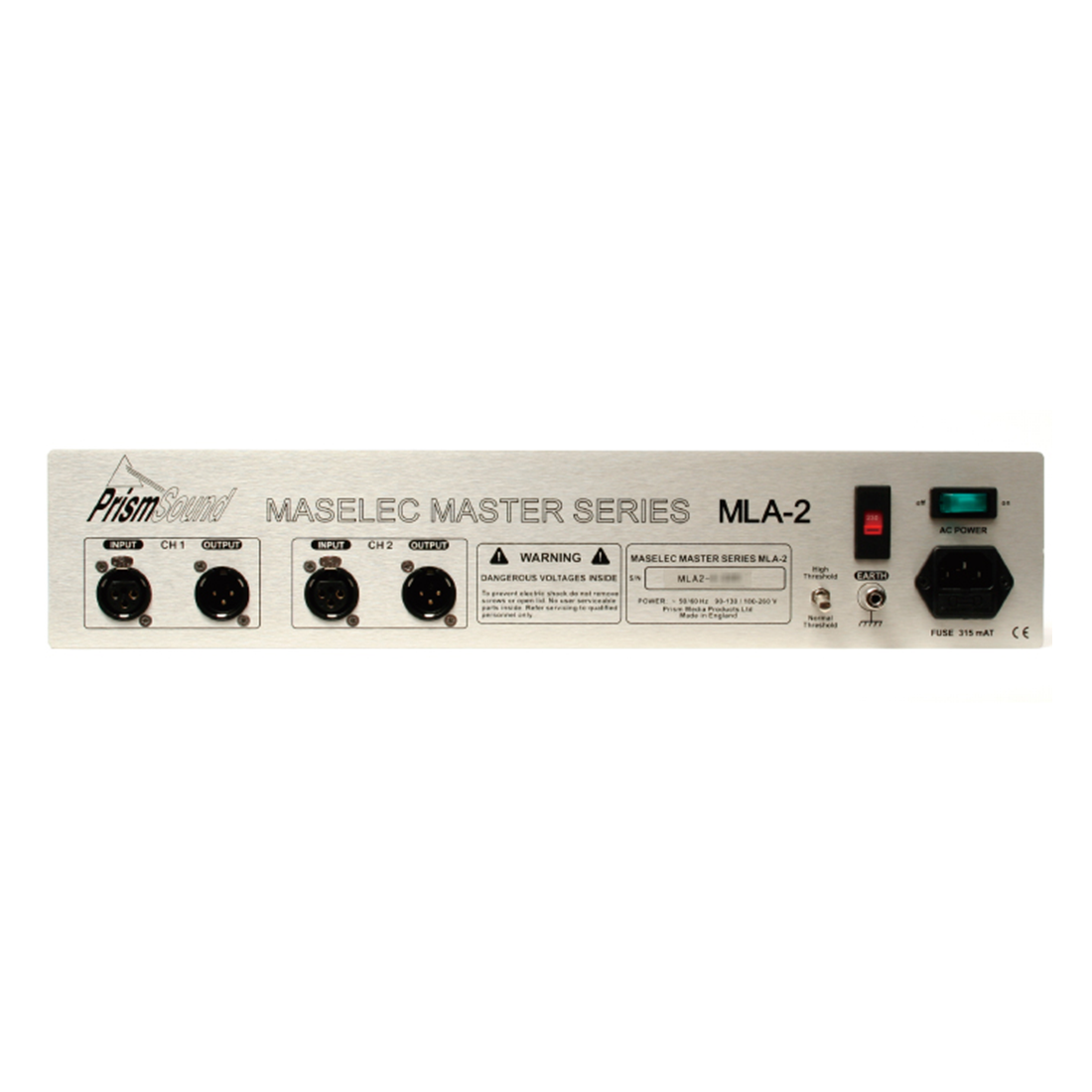

Analogue inputs
The analogue inputs are on three pin gold plated Neutrik XLR connectors with signal on pins 2 and 3 respectively, and screen on pin 1.
Pins 2 & 3 have a very high impedance path to earth.
Differential input impedance: 100kohm (pin 2 to pin 3)
Unbalanced input impedance: 100kohm (pin 1 to 2 or 3)
Analogue outputs
The analogue outputs are on three pin gold plated Neutrik XLR connectors with signal on pins 2 and 3 respectively, and the screen on pin 1.
Output impedance: 33ohm (pin 2 to pin 3, balanced)
Unbalanced output impedance: 33ohm (pin 1 to 2 or 3)
Performance specification
in/out switches are illuminated and other settings are: •
Input Gain: -10dB •
Output Gain: +10dB •
Threshold: High •
Ratio: 2:1 •
Attack: 0.100ms/dB •
Release: 0.10sec/dB
Maximum input amplitude: +29dBu
Output noise: Compressor out < -99dBu
Compressor in < -93dBu
Frequency response: + 0.1, -0.4dB, 50 kHz
Crosstalk: less than -100 dB, 20 Hz to 20 kHz
Dynamic range: Compressor out > 128dB
Compressor in > 110dB
Servicing and repair
There are no user serviceable parts inside this unit.
Repairs should only be undertaken by qualified electronics technicians or engineers.
Mains transformer voltage selection
The mains transformer has a tapped primary to allow operation at nominal voltages of 115V or 230V. Ensure that the correct voltage range is selected before using the MLA-2.
Fuse
There is one mains fuse, accessible externally in the IEC320 mains inlet. If this fuse is blown it should be replaced by a similar value and type.
20x5mm 250V 315mAT (antisurge, slow)
Earthing
The unit has an internal link connecting the audio ground to the chassis.
A chassis earth stud is provided on the rear of the unit.
Physical dimensions
Weight: (10lb) (5kg)
Width: 19 inch (483mm) rack-mountable
Height: 2U (90mm)
Depth: 10.25 inches (260mm) add clearance for connectors
ELECTROMAGNETIC COMPATIBILITY
This equipment is intended for use in an electromagnetically controlled environment.
To maintain the performance specification it should not be subject to strong magnetic fields (such as in the immediate vicinity of a power amplifier or cathode ray tube)
This equipment does not include digital circuitry or generate high frequencies that could be radiated or conducted from the unit.
