MEYER SOUND AMIE - SINGLE 메이어사운드 에이미 싱글 모니터 스피커
가격문의
010-5494-1005
문자 / 카톡으로 성명 연락처 모델명 남겨주시면
최저가로 견적 드리겠습니다.

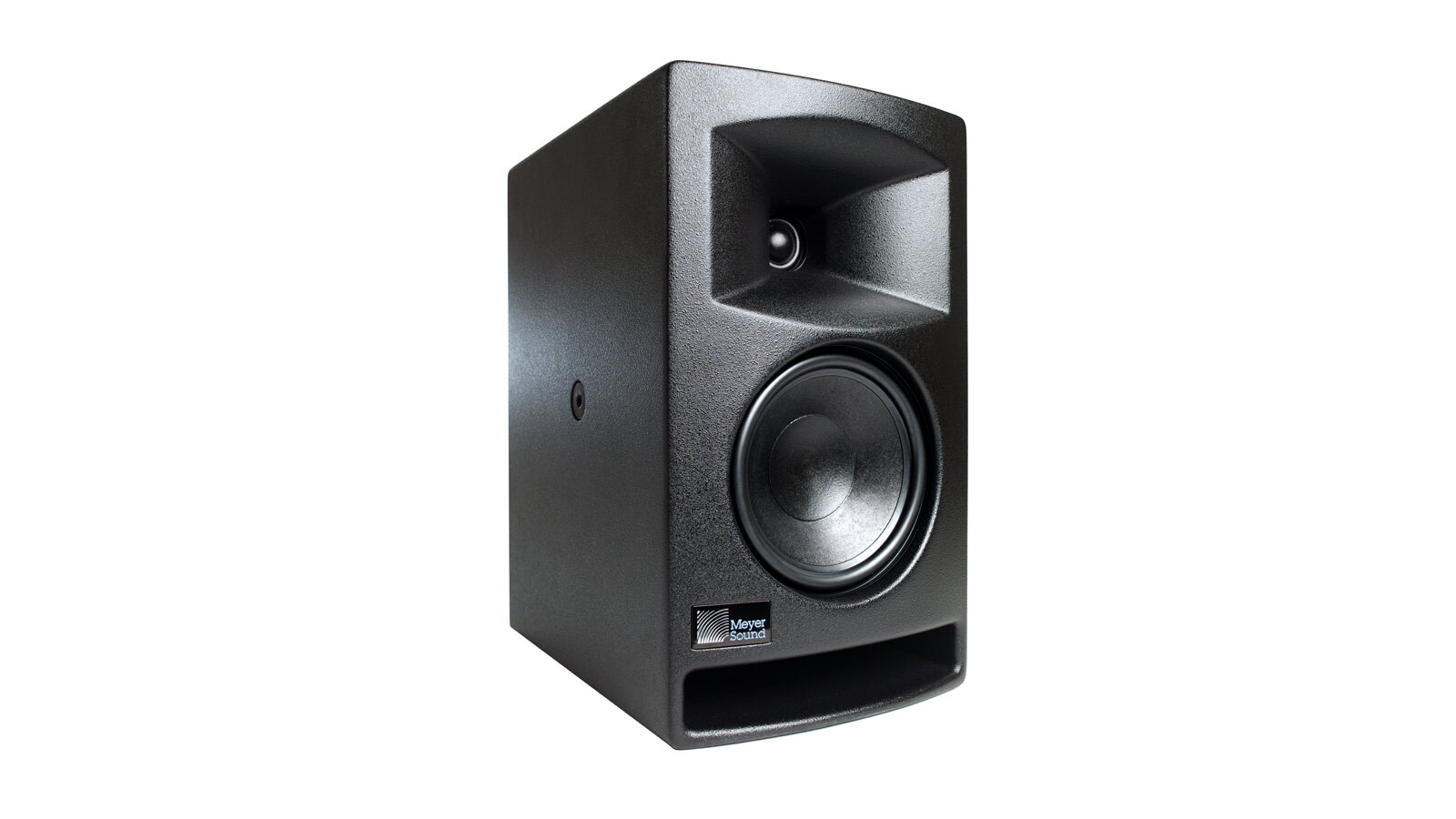

MeyerSound - AMIE
기기는 셀프 파워 스튜디오 모니터 스피커로 트랜스듀서는 한 개의 6.5인치 직경의 long-excursion 콘 드라이버와 한 개의 1인치 돔 트위터를 포함해야 하며 내장 프로세싱과 2개 채널의 Class D의 앰프, 각 드라이버당 한 채널을 통합 포함하여야 한다. 프로세싱은 EQ, 페이즈 보정, 드라이버 보호 와 신호 분배 기능을 포함하고 스피커의 커버리지는 수평각 80도 수직각은 50도 이어야 한다.
Acoustical
Operating Frequency Range : 42 Hz – 22 kHz
Frequency Response : 45 Hz – 20 kHz ± 4 dB
Phase Response : 190 Hz – 20 kHz ±45°
Linear Peak SPL : 120.5 dB with >18.5 dB crest factor (M-noise)
Coverage
Horizontal Coverage : 80°
Vertical Coverage : 50°
Transducers
Low Frequency : One 6.5-inch long-excursion cone driver; 4 Ω nominal impedance
High Frequency : One 1-inch dome tweeter on a constant-directivity waveguide; 4 Ω nominal impedance
Audio Input
Type : Differential, electronically balanced
Maximum Common Mode Range : ±15 V DC
Connectors : XLR 3-pin female input with male loop output.
Input Impedance : 10kΩ differential between pins 2 and 3
Wiring : Pin 1: Chassis/earth through 1 kΩ 1000, pF, 15 V clamped network to provide virtual ground lift at audio frequencies Pin 2: Signal (+) Pin 3: Signal (-)
Pin 4: RMS Pin 5: RMS Case: Earth ground and chassis
Nominal Input Sensitivity : 6 dBV (2.0 V rms) continuous is typically the onset of limiting for noise and music
Input Level : Audio source must be capable of producing of +20 dBV (10 V rms) into 600 Ω to produce the maximum peak SPL over the operating bandwidth of
the loudspeaker.
Amplifier
Type : Two-channel, Class-D
Total Output Power : 900 W peak
THD, IM, TIM : < 0.02%
Cooling : Convection
AC Power
Connectors : powerCON 20 input with loop output (up to 7 Amie loudspeakers may be safely looped)
Automatic Voltage Selection : 90-265 V AC
Safety Agency Rated Voltage Range : 100–240 V AC, 50–60 Hz
Turn-on and Turn-off points : 90 V AC turn-on, no turn-off; internal fuse-protection above 265 V AC
CURRENT DRAW
Idle Current : 0.6 A rms (230 V AC)
Maximum Long-Term Continuous Curent(>10sec) : 10.5 A rms (230 V AC)
Burst Current (<1 sec) : 18 A rms (230 V AC)
Maximum Instantaneous Peak Current : 53 A peak (230 V AC)
Inrush Current : < 30 A peak
Physical
Dimensions : W: 9.00 in (229 mm) x H: 15.30 in (389 mm) x D: 13.24 in (336 mm)
Weight : 25 lb (11.3 kg)
Enclosure : Premium multi-ply birch, low-gloss slightly textured black finish
Rigging : M8 threaded side attachment points for optional mounting accessories
